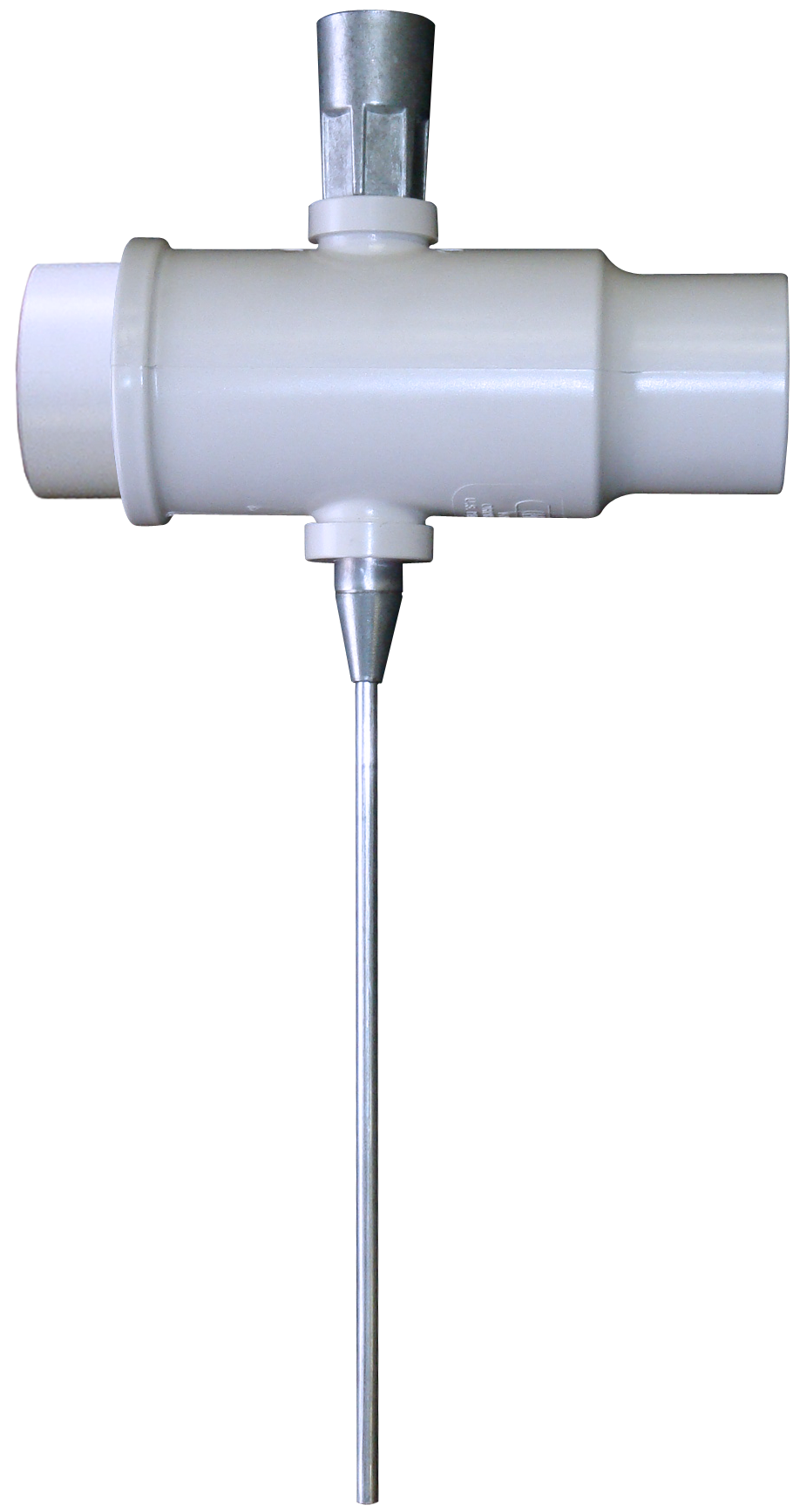

| SPIKE COUPLERS | |||||
|---|---|---|---|---|---|
 |
For use with 2” or 2 ½” PVC pipe. Putting water in its place! The Spike riser locks male and female coupler halves and stabilizes the riser in a vertical position. Substantial savings over aluminum or buried solid set systems. Improved weatherability PVC compounds. Highest UV inhibitors. Highest impact resistance. Easy off season storage…simply remove Spike Riser. | ||||
| TYPE | SIZE | IACOPARTNO | WEIGHT | BOXQTY | |
 |
Complete | 2″ | MSC-200-000 | 1.21 | 50 |
| Complete | 2-1/2″ | MSC-250-000 | 1.61 | 50 | |
 |

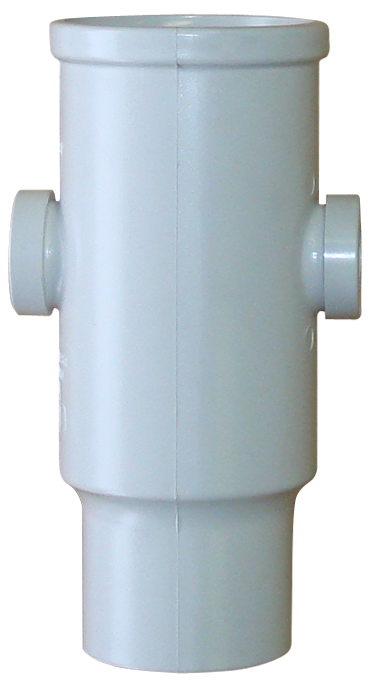

Female Molding w/quad seals & caps | 2″ | MSC-F20-000 | 0.5 | 50 |
| Female Molding w/quad seals & caps | 2-1/2″ | MSC-F25-000 | 0.5 | 50 | |
 |

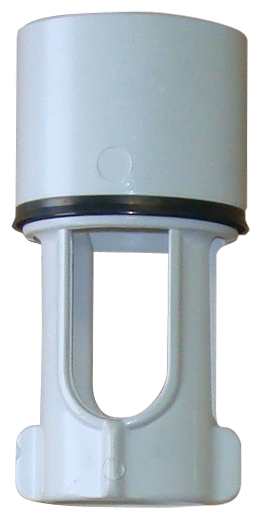

Male Molding w/ cheveron seal gasket | 2″ | MSC-M20-000 | 0.24 | 50 |
| Chevron Seal Gasket | 2″ | MSC-CH0-000 | 0.1 | 50 | |
| Chevron Seal Gasket Type 1 | 2″ | MSC-CHT-100 | 0.1 | 50 | |
| Quad Seal | 2″ | MSC-QD0-000 | 0.1 | 50 | |
| Quad Seal | 2 1/2″ | MSC-QD0-000 | 0.1 | 50 | |
| Cap for Quad Seal | 2″ | MSC-CP0-000 | 0.1 | 50 | |
| Cap for Quad Seal | 2 1/2″ | MSC-CP0-000 | 0.1 | 50 | |
 |

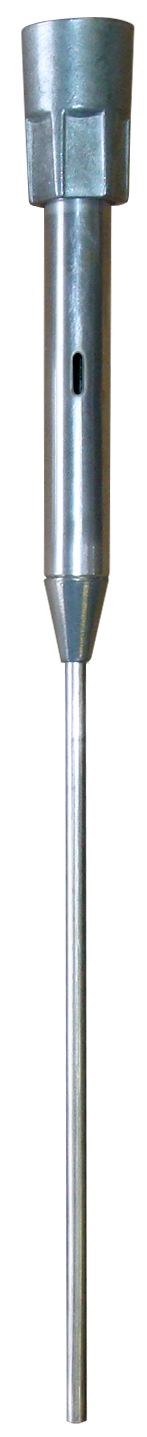

Spike Riser w/ 3/4″ IPT outlet | 2″ | MSC-RAL-000 | 0.47 | 75 |
| Aluminum Tube for mainline coupler w/ cotter keys | 2″ | MSC-MAL-000 | 0.25 | 50 | |
| Adapter for male end | 2-1/2″ | MSC-M25-000 | 0.5 | 50 | |
| VALVE STEM & DISCS | |||||
|---|---|---|---|---|---|
| Stem: Universal – For 3” x 4” Univerasal Valves, Fits most Pierce, Alumax, Irreco, Moore-Rane, Wade – Universal, Ames, Lake, Crown, Western and Travis-Rainway. Disc: Fits most Pierce, Alumax, Irreco, Moore-Rane, Wade – Universal, Ames, Lake, Crown, Western and Travis-Rainway Valves with 5/8” stem hole. | |||||
| SIZE | TYPE | IACOPARTNO | WEIGHT | BOXQTY | |

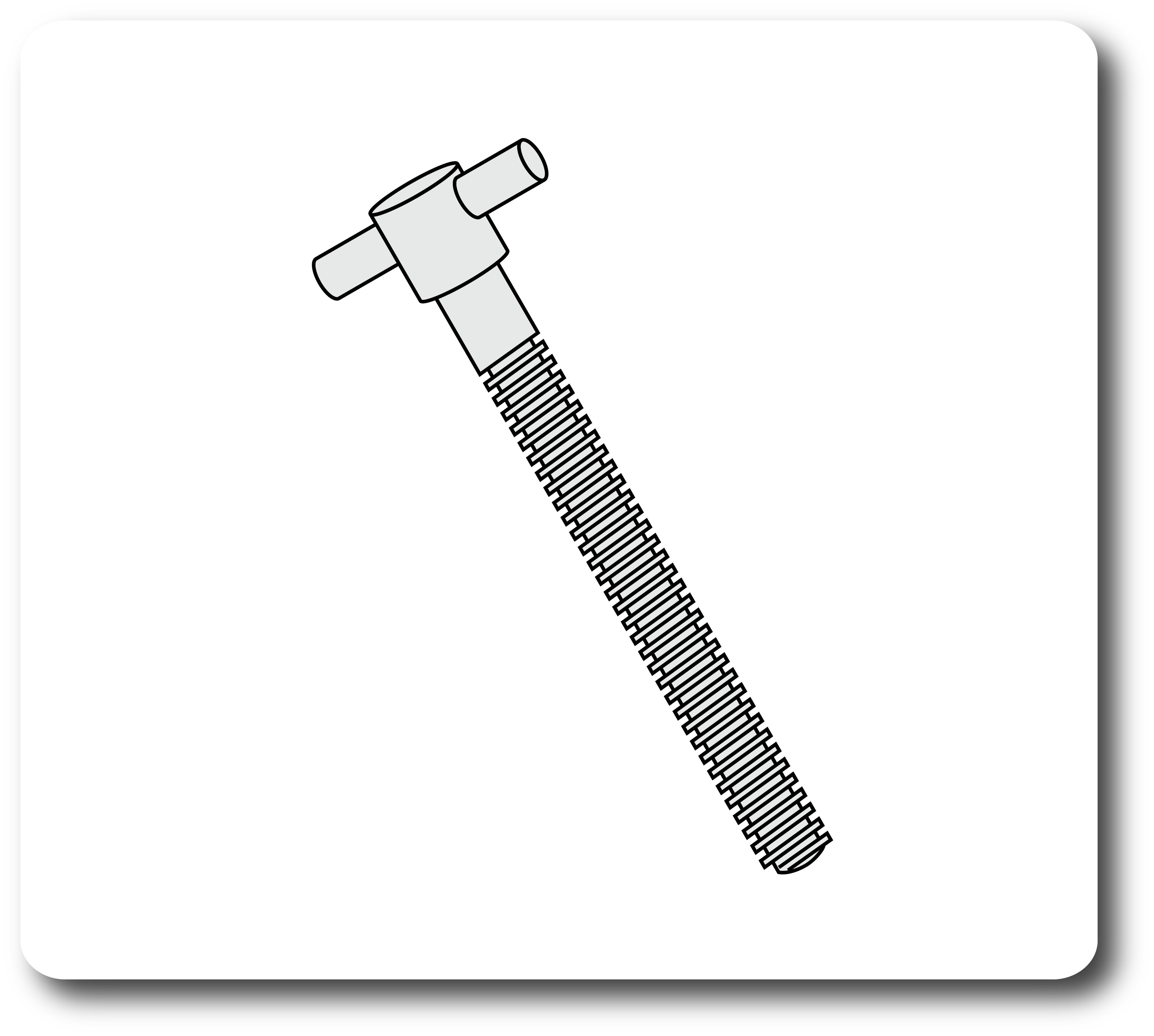

| Plated Steel Valve Stem | |||||
 | 6 3/4″ x 5/8″ | Acme | MVS-000-000 | 0.57 | 50 |

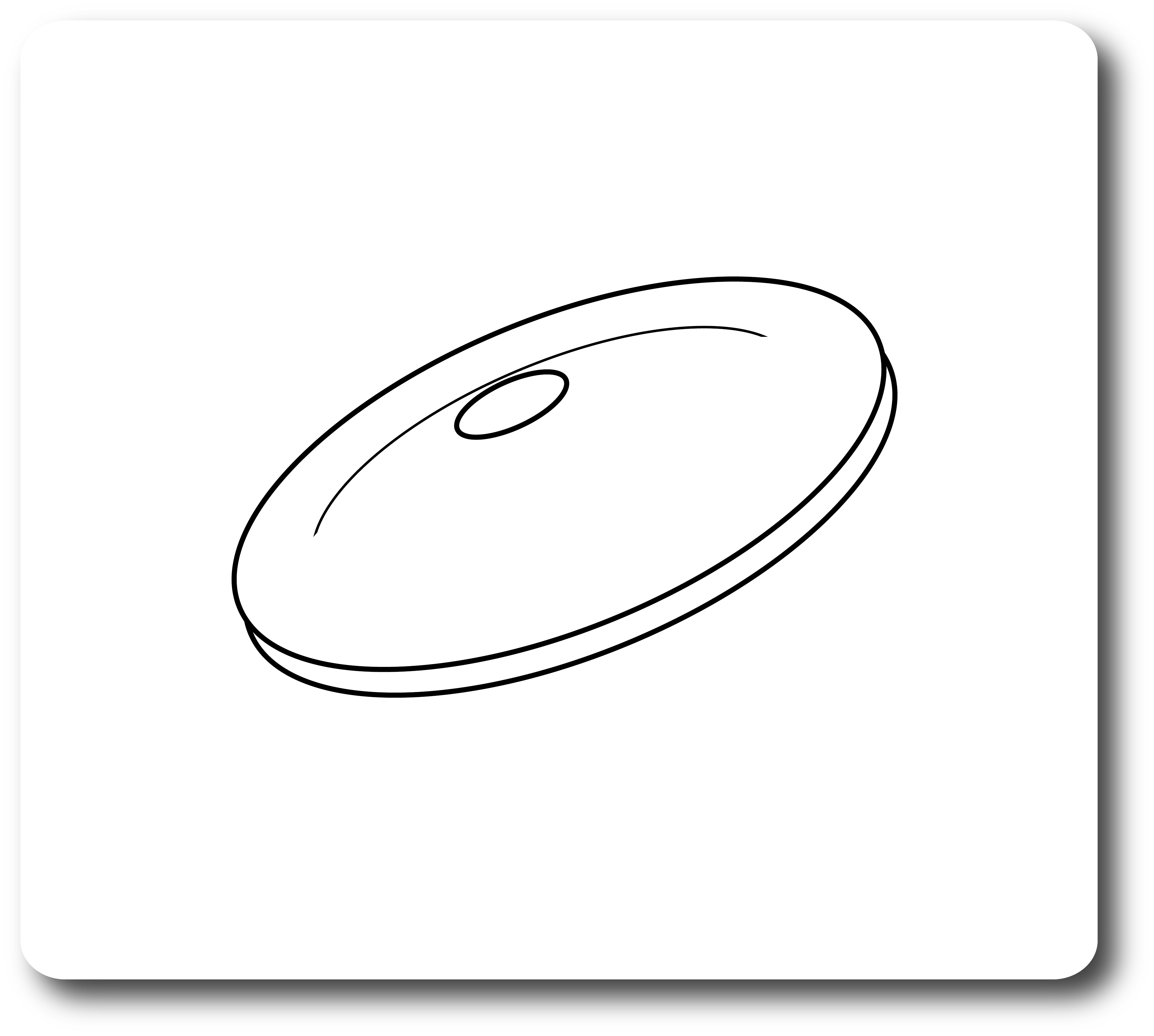

| Domed Valve Disc | |||||
 | 4″ | MVD-000-400 | 0.39 | 50 | |
| 3″ | MVD-000-300 | 0.26 | 50 | ||

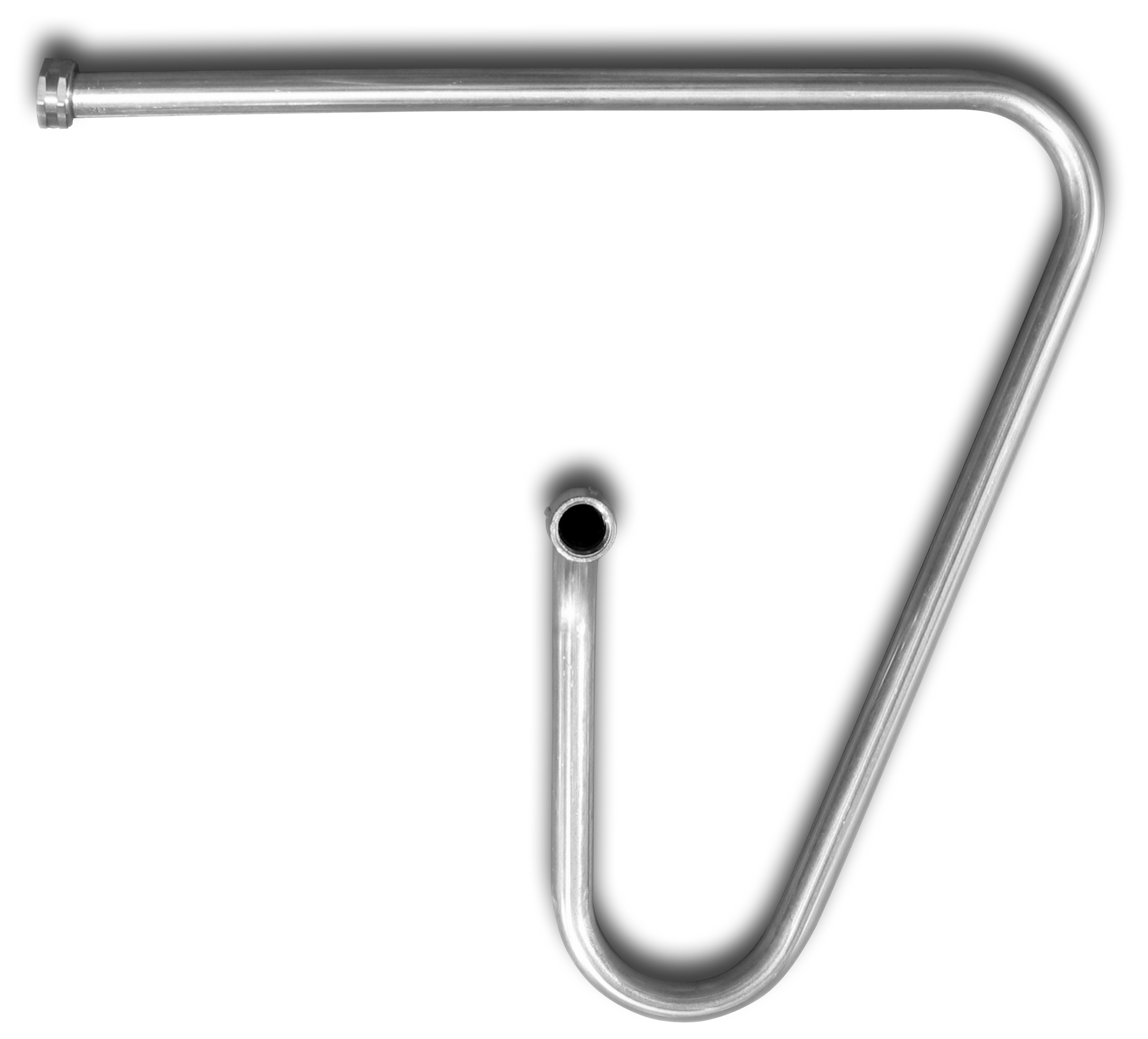

| TRIDENTS | |||||
|---|---|---|---|---|---|
 |
Engineered to provide a more stable 3-point “milk stool” stance. Looking for fancy painted tubing? Look somewhere else! The Trident’s innovative design features industrial grade 16 gauge a STM-513 ERW 3/4″ O.D. steel tubing with G90 galvanized coating inside and out. Die cast wedge fit “Zamac” zinc alloy sprinkler outlet will not rust, seize or gall. Hexed brass swivel 3/4″ hose adapter with washer. | ||||
| TYPE | SIZE | IACOPARTNO | WEIGHT | BOXQTY | |
 |
1/2″ Sprinkler Outlet | 500 | MST-TRI-050 | 1.84 | 20 |
| 3/4″ Sprinkler Outlet | 750 | MST-TRI-075 | 2.28 | 20 | |
